Jet-Pad Core Cooling & Plunger Pad
High-Pressure Water & Air Force Core Cooling System

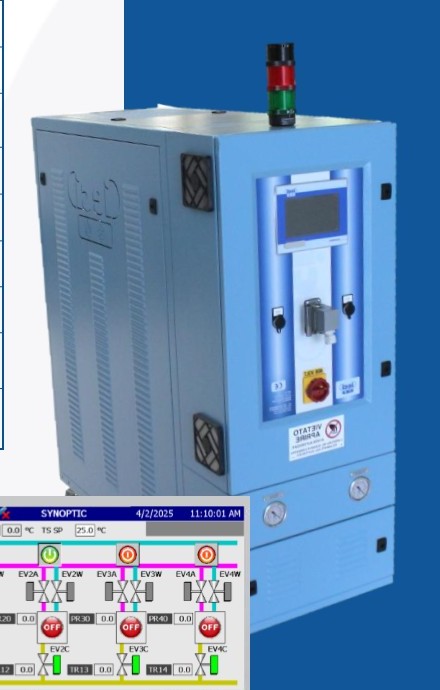

The IECI Jet-Pad is a high-pressure cooling unit engineered specifically to prevent porosity and shrink defects in thick wall sections, deep cores, and critical die zones. By blasting high-pressure treated water followed by compressed air purging at pressures up to 40 bar, it guarantees intensive thermal extraction without steam blanket barrier formation.
Available in two distinct models — Jet-Pad M1 (1 independent zone) and Jet-Pad M4 (4 independent zones) — the system features built-in safety diagnostics including an automatic Broken-Pin-Test executed on every single casting cycle to detect damaged core pins before liquid aluminium can enter cooling circuits.

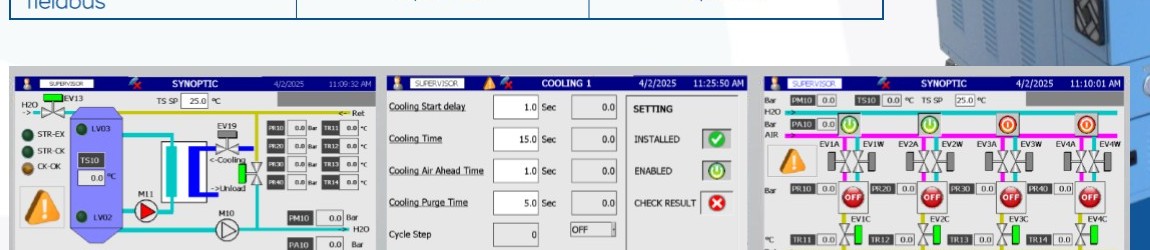

Dual-screen synoptic layout showing cycle settings, flow checks, cooling times, and broken-pin test feedback
| Feature / Parameter | JET-PAD M1 | JET-PAD M4 |
|---|---|---|
| N. Independent Zones | 1 zone | 4 zones |
| Delivery Pressure | Adjustable up to 16 bar | Adjustable up to 40 bar |
| Max Delivery Flow Rate | 16 l/min | 65 l/min |
| Max Delivery Temperature | 60°C | 60°C |
| User Interface | 4.3" touchscreen | 7" touchscreen |
| Delivery Pressure Control | Included | Included |
| Broken-Pin-Test | Included | Included |
| Flow Rate & Volume Measurement | Optional | Optional |
| Communication on Fieldbus | Optional (Profinet / Modbus) | Optional (Profinet / Modbus) |

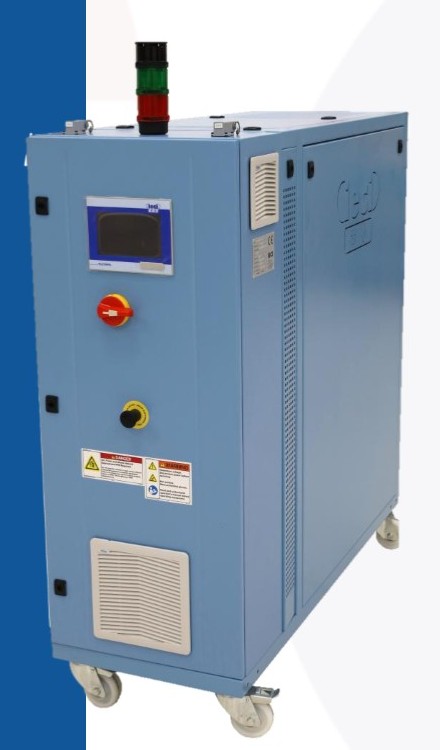

The IECI Plunger Pad is an intelligent boosting pump system equipped with an adaptive inverter drive and real-time continuous monitoring of temperature difference (ΔT supply/return) to automatically regulate cooling flow according to actual thermal load.
Key Plunger Pad Benefits:
- Extended Plunger & Tip Lifetime: Prevents premature thermal fatigue and tip deformation.
- Optimized Energy Consumption: Inverter matches pump speed to thermal load demand.
- Selectable Control Modes: Operates under pressure control or flow control mode.
- External Chiller Connector Option: Direct integration with plant chilled water circuits.
- Multi-Protocol Communication: Interfaced with machine supervisor via industrial fieldbus.

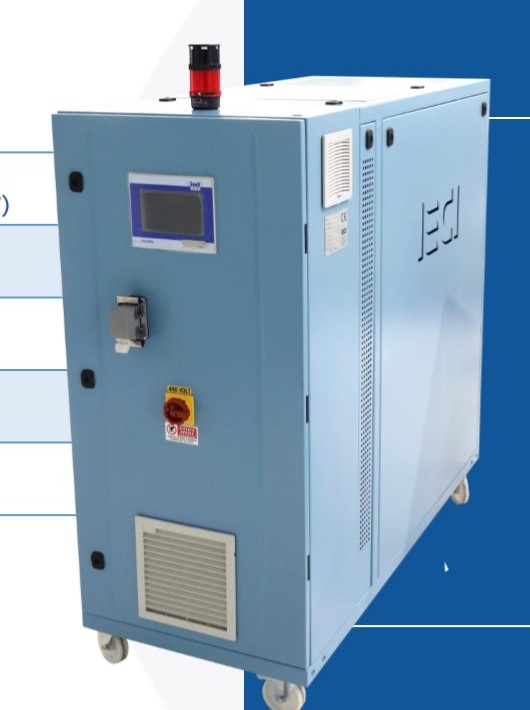

The IECI MultiPad provides direct cooling with controlled mixing for high-demand die casting moulds requiring high-volume fluid distribution with optional heating capability up to 90°C.
| MultiPad Parameter | Specification |
|---|---|
| Flow Temperature | Cooling (Heating up to 90°C optional) |
| Heating Capacity | Customized |
| Cooling Capacity | Direct cooling system with controlled mixing |
| Pump Working Pressure | 480 l/min at 7 bar |
| Max. Pressure | 13 bar |
| Customization | ALL DATA CAN BE CUSTOMIZED |
Official Technical Catalogue
IECI General Technical Presentation & Product Catalogue
Download the complete high-resolution PDF catalogue featuring technical drawings, hydraulic schematics, temperature control unit specifications (Water & Oil), GigaThermo for Mega & Giga Casting, Quenching Tanks, and Pioneer multi-channel solutions.
