HomeIECI Srl, ItalyMegaThermo & GigaThermo
MegaThermo & GigaThermo for Mega & Giga Casting

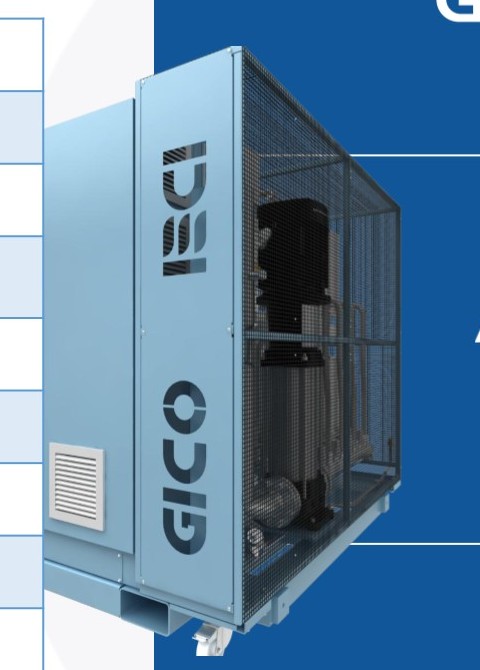

IECI GigaThermo Unit

High-Capacity Thermal Control for Mega & Giga Die Casting

The automotive casting industry is being transformed by Mega Casting and Giga Casting — the manufacturing of massive single-piece structural aluminium components such as front/rear underbodies, battery enclosures, and suspension towers on 6,000 to 12,000+ ton casting machines.

IECI has pioneered the GigaThermo and MegaThermo series to meet the tremendous thermal challenges posed by these monumental moulds. With massive cooling capacities of up to 600 kW and flow distribution across up to 40 individual circuits, IECI systems maintain homogeneous temperature gradients across gigantic die surfaces, eliminating warpage, cold shuts, and residual stresses.



MegaThermo Series (Compact High-Output Solution)

The IECI MegaThermo is engineered for mid-to-large structural die casting machines requiring intense thermal regulation up to 300 kW cooling capacity with distribution across typically 10 high-flow circuits.

Utilizing pressurized water up to 160°C, MegaThermo eliminates the environmental hazards and high operating costs of oil, while delivering extraordinary heat transfer rates that shorten cycle times on complex structural parts.

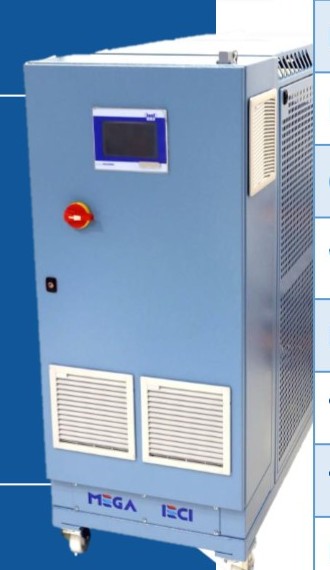

IECI MegaThermo


GigaThermo & MegaThermo Technical Specifications
Parameter GIGATHERMO MEGATHERMO
Heating Fluid Pressurized Water Pressurized Water
Flow Temperature max 160°C max 160°C
Heating Capacity 144 kW 54 kW
Cooling Capacity 600 kW 300 kW
Pump Working Pressure 480 l/min at 6 bar (or 700 l/min at 11 bar) 280 l/min at 8 bar (or 400 l/min at 11 bar)
System Working Pressure 14 – 16 bar Up to 11 bar
Distribution Circuits Up to 40 circuits Typically 10 circuits
Total Power Absorption 164 kW 61.7 kW
Total Current Absorption 236 A 105 A
Dimensions (W x L x H) 1350 x 1750 x 1650 (h) mm 1400 x 600 x 1250 (h) mm
Customization ALL DATA CAN BE CUSTOMIZED TO APPLICATION REQUIREMENTS

Download Catalogue
Official Technical Catalogue

IECI General Technical Presentation & Product Catalogue

Download the complete high-resolution PDF catalogue featuring technical drawings, hydraulic schematics, temperature control unit specifications (Water & Oil), GigaThermo for Mega & Giga Casting, Quenching Tanks, and Pioneer multi-channel solutions.

Format: PDF Document File Size: 5.9 MB High-Resolution Schematics
