We Represent
IECI Srl, Italy
PF-ZH Water Temperature Control Units & Sleeve Regulating Systems
IECI Srl, Italy
Pressurized Water TCU up to 200°C with PID Digital Control
HomeIECI Srl,
ItalyPF-ZH Water Temperature Control
Unit

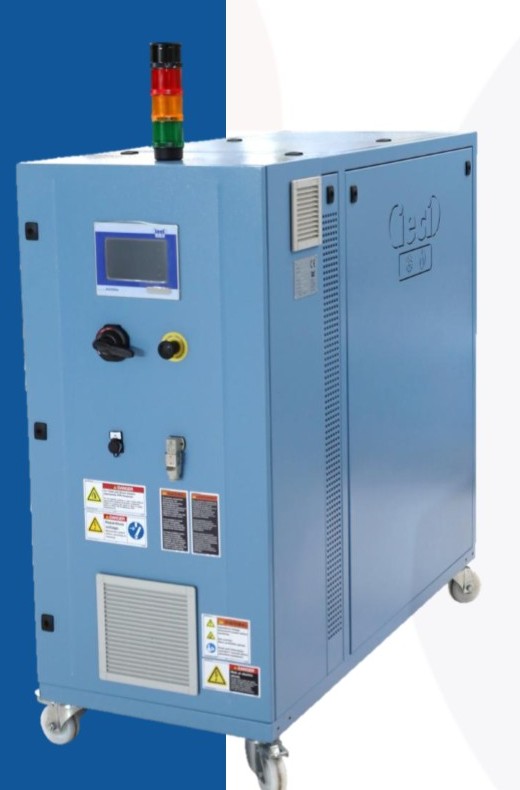

PF-ZH Water Temperature Control Unit
High Performance Pressurized Water Thermal System up to 200°C
The IECI PF-ZH thermal system is specially engineered for die casting foundries requiring precise, efficient, and clean temperature regulation up to 200°C using pressurized water. Featuring 1 or 2 fully independent channels, the unit delivers superior heat transfer rates, reduced cycle times, and eliminates hazardous oil disposals.
Manufactured with an all-stainless steel hydraulic circuit, independent digitally controlled pressurization, and dedicated high-efficiency circulation pumps, the PF-ZH guarantees zero oxidation and incorporates an advanced anti-scale cooling system that extends mould tool life.

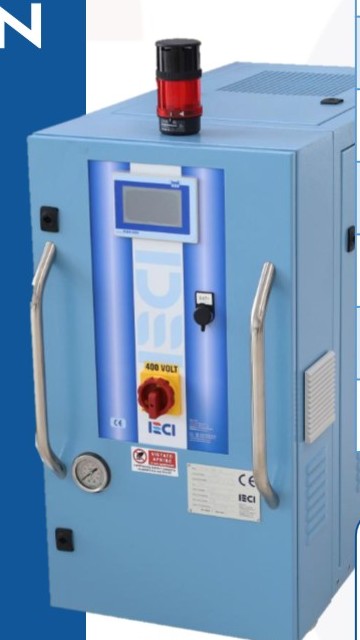

The PF-ZH Sleeve Version is specifically designed to regulate shot sleeve temperature via pressurized water through dedicated cooling/heating channels. Consistent shot sleeve thermal conditioning prevents thermal distortion, avoids aluminium soldering, and drastically extends shot sleeve and plunger tip service life.
Key Engineering Features:
- Modular Design: Compact footprint ensuring effortless maintenance and rapid access.
- External Heating Elements: Eliminates direct fluid contact, preventing scale deposits and heater burnout.
- Increased Pressurization: Prevents vaporization, boiling, and cavity erosion inside sleeve channels.
- Additional Expansion Vessel: Guarantees optimal water volume and continuous circulation stability.
- 3-Way Proportional Cooling: Precision heat exchanger provides high cooling performance and micrometer-level temperature stability.

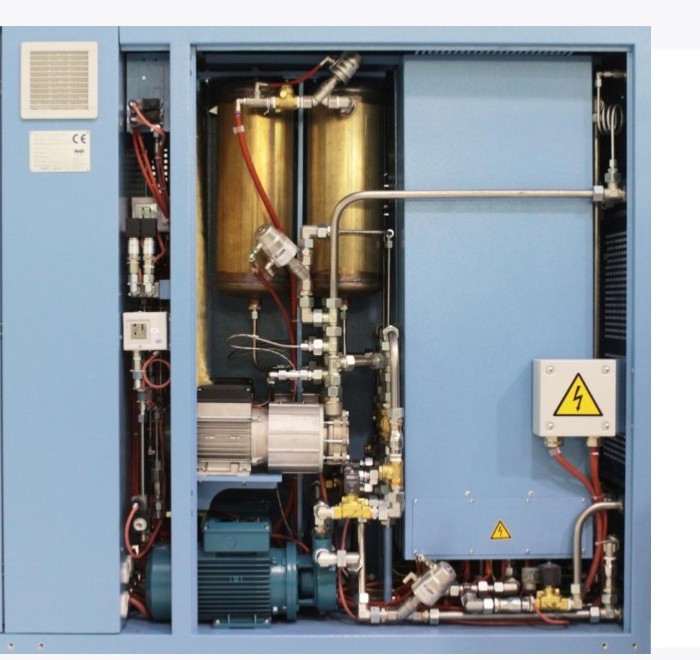

Internal view showing stainless piping, PID valves and safety sensors
Engineering Excellence
Every PF-ZH unit is manufactured in IECI's Brescia plant under strict European pressure equipment regulations (PED Category II). The integration of magnetic safety valves, pressure transmitters, and digital PID controls ensures zero fluid loss and immediate alerts in case of micro-leaks.
The open hydraulic layout facilitates swift diagnostics and preventive servicing, keeping your die casting cell operating around the clock with maximum OEE (Overall Equipment Effectiveness).
| Parameter | Technical Specification |
|---|---|
| Heating Fluid | Pressurized Water |
| Flow Temperature | max 200°C |
| Circuits / Zones | 1 or 2 independent circuits |
| Heating Capacity | 24 kW |
| Cooling Capacity | 18 kW or 24 kW |
| Pump Performance | 100 l/min at 8 bar |
| Dimensions (W x L x H) | 500 x 1550 x 1550 mm |
| Customization | ALL DATA CAN BE CUSTOMIZED TO CUSTOMER SPECIFICATION |
Official Technical Catalogue
IECI General Technical Presentation & Product Catalogue
Download the complete high-resolution PDF catalogue featuring technical drawings, hydraulic schematics, temperature control unit specifications (Water & Oil), GigaThermo for Mega & Giga Casting, Quenching Tanks, and Pioneer multi-channel solutions.
Format: PDF
Document
File Size:
5.9 MB
High-Resolution
Schematics
