PFN Oil Temperature Control Unit

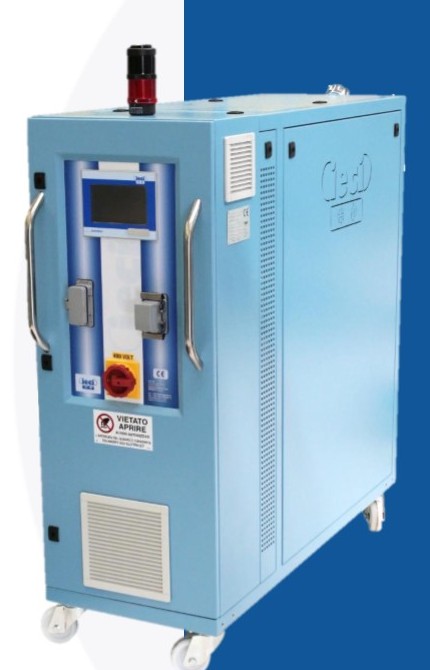

IECI PFN Oil TCU

Safe High-Temperature Operation with Diathermic Oil

The IECI PFN unit is purpose-built for safe, ultra-reliable high-temperature operation up to 330°C (up to 350°C optional) utilizing diathermic thermal oil. It represents the pinnacle of thermal efficiency for pre-heating and conditioning die casting dies, especially for complex geometries, thin walls, and high-integrity castings.

The PFN series features 100% leak-free magnetic drive pumps, sealed immersed heating elements, and sophisticated PID digital control.

IECI Patented Innovation: Adaptive Inverter System

An adaptive inverter system (IECI Patent) automatically optimizes oil flow rate and temperature according to real-time thermal load. Integrated supervisor software continuously monitors all operating parameters, delivering dramatic energy reduction, zero pump cavitation, and exceptional equipment lifespan.



PFN 330 2Z Sleeve Version (Shot Sleeve & Plunger Thermal Conditioning)

The PFN 330 2Z Sleeve Version delivers dual-zone diathermic oil temperature regulation for shot sleeves and plungers in heavy-duty cold chamber die casting machines. Providing an extraordinary 190 kW cooling capacity, it prevents sleeve overheating during rapid shot rates.

Customizable Configurations:

  • One or two independent temperature zones.
  • Water and diathermic oil combination configurations.
  • Integrated sleeve and plunger simultaneous conditioning.
  • Profinet / OPC UA communication to machine cell controller.

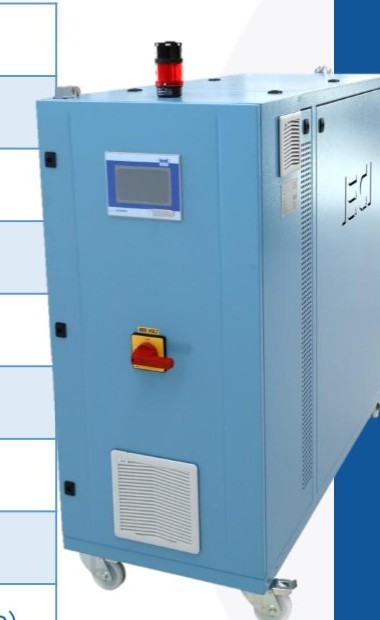

PFN 330 2Z Sleeve Version


Internal Construction & Heavy-Duty Components

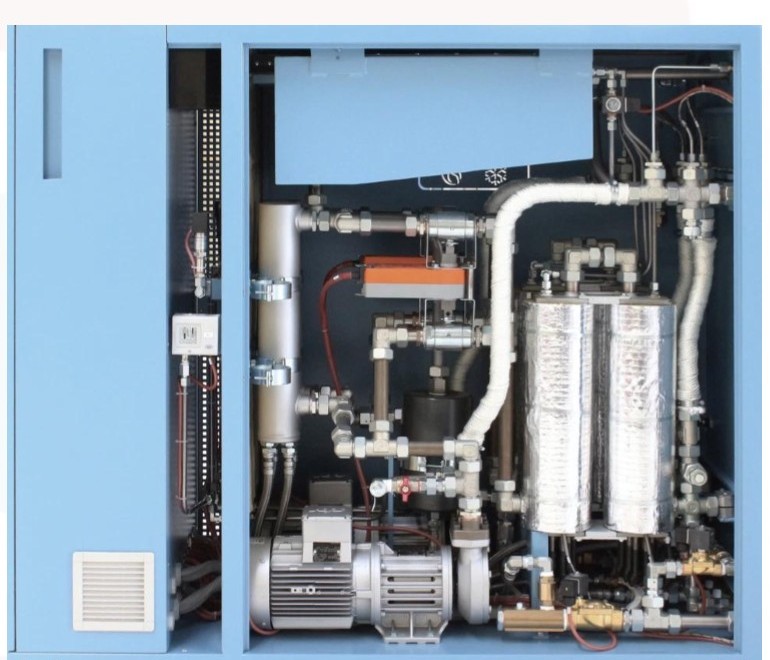

PFN Internal Circuit

PFN internal layout with magnetic drive pump and insulated heat exchangers

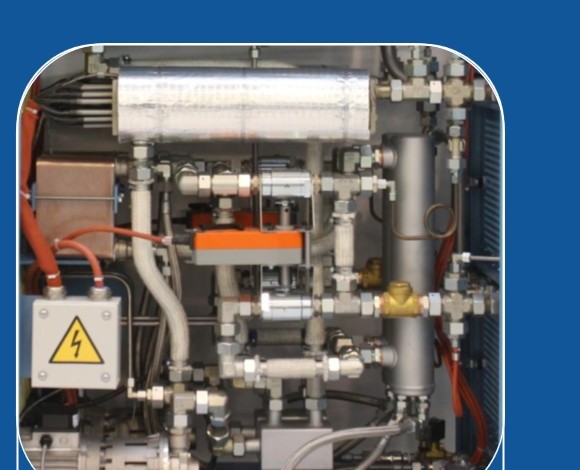

PFN Sleeve Internal

Dual-circuit hydraulic manifold with proportional PID modulating valves



Technical Specifications (PFN 330 2Z Sleeve Version)
Parameter Technical Specification
Heating Fluid Diathermic Oil
Flow Temperature max 330°C (up to 350°C optional)
Circuits / Zones 2 independent circuits
Heating Capacity 24 kW
Cooling Capacity 190 kW
Pump Performance 100 l/min at 8 bar
Total Power Absorption 47.6 kW
Total Current Absorption 69 A
Dimensions (W x L x H) 1400 x 600 x 1250 (h) mm
Customization ONE OR TWO ZONES • WATER AND OIL • SLEEVE + PLUNGER

Download Catalogue
Official Technical Catalogue

IECI General Technical Presentation & Product Catalogue

Download the complete high-resolution PDF catalogue featuring technical drawings, hydraulic schematics, temperature control unit specifications (Water & Oil), GigaThermo for Mega & Giga Casting, Quenching Tanks, and Pioneer multi-channel solutions.

Format: PDF Document File Size: 5.9 MB High-Resolution Schematics
